Santa Cruz Stigmata 4 Cc Force 2x Rsv Bike
Original price was: $5,950.00.$4,297.00Current price is: $4,297.00.
‘

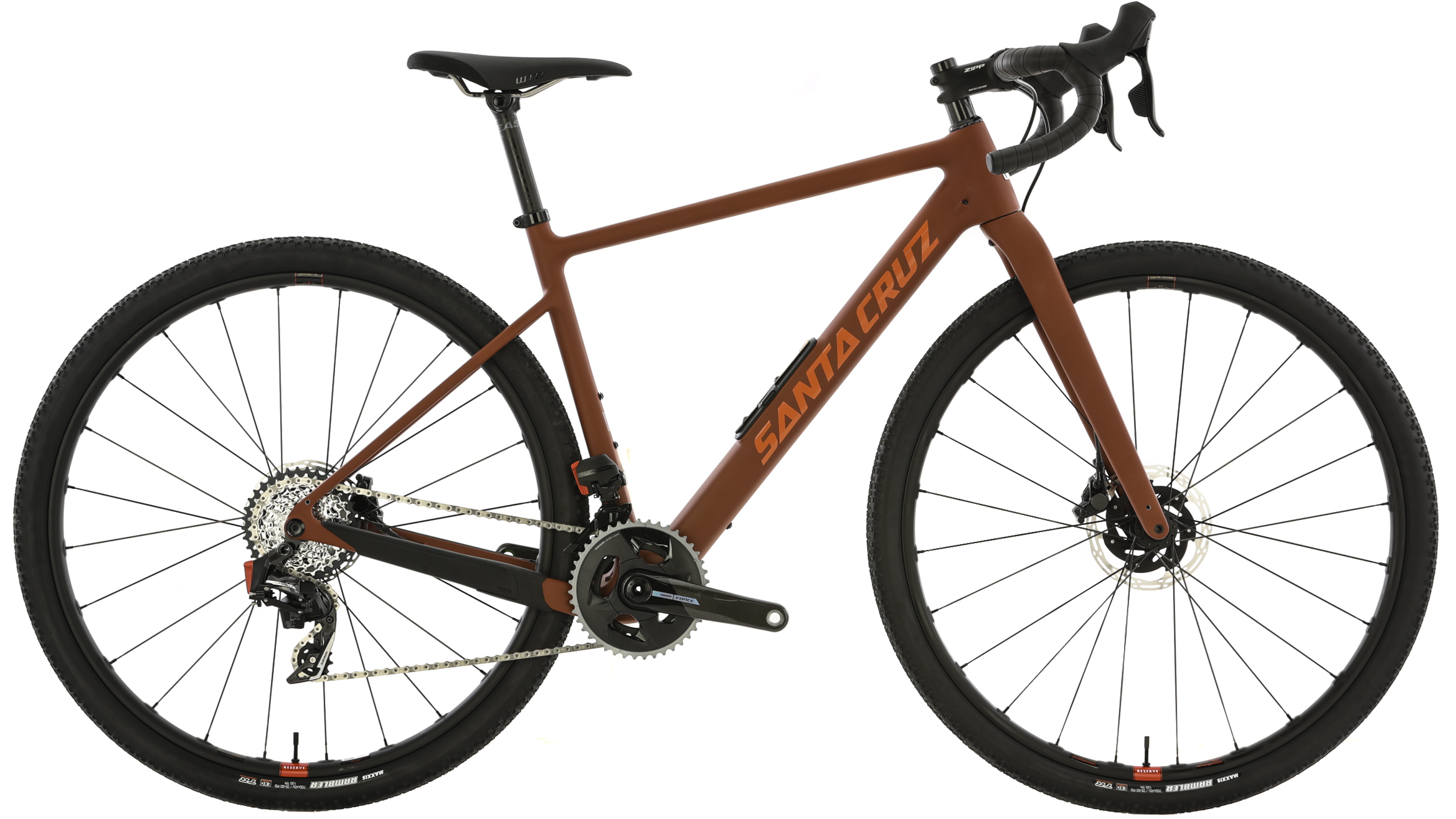

Santa Cruz Stigmata 4 CC Force 2x RSV Bike
Gravel Bikes Have Diversified
Gravel bikes have become incredibly popular in the bike world. With more versatility than ever, these bikes can easily become the only bike you’ll ever want to ride. The Santa Cruz Stigmata 4 CC Force 2x RSV Bike is a highly capable gravel bike that is ready for your next race, cruise on the fire road, or adventure on the singletrack. It has a Carbon CC Frame that is fast, lightweight, and strong. It has a longer top tube that is paired with a shorter stem for stable steering and the rigid carbon fork is suspension corrected for a 40mm travel fork. The frame features a Glovebox that allows for extra room to stash your essentials, internal cable routing, three bottle cage mounting points, a threaded bottom bracket, Universal Derailleur Hanger, 27.2mm dropper post compatibility, clearance for up to 50mm tires, and integrated chainstay protection.
The Force 2x RSV version of the Santa Cruz Stigmata 4 comes with a SRAM Force AXS 2×12-speed wireless electronic drivetrain. With a 43/30T chainring upfront and a 10-36T cassette on the rear, you’ll be able to climb much easier and pedal through difficult terrain without much hassle. SRAM Force AXS hydraulic disc brakes provide excellent stopping power so you can descend under control. Reserve 25|GR 700c carbon fiber rims are paired with Maxxis Rambler 700x45c tires that can be set up tubeless for a smoother ride, better traction, and fewer flats.
Features
- Carbon CC Frame with a Glovebox that allows for extra room to stash your essentials, internal cable routing, three bottle cage mounting points, a threaded bottom bracket, Universal Derailleur Hanger, 27.2mm dropper post compatibility, and integrated chainstay protection
- Wide tire clearance for up to 50mm wide tires
- SRAM Force AXS 2×12-speed wireless electronic drivetrain performs well in all riding conditions
- SRAM Force AXS hydraulic disc brakes provide excellent stopping power and modulation
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
| Frame | Carbon CC Gravel |
|---|---|
| Fork | Carbon CC, 12x100mm Thru-Axle |
| Headset | Cane Creek 40 IS Integrated Headset |
| Shifters | SRAM Force AXS, 2×12-Speed |
| Front Derailleur | SRAM Force Wide AXS, 12-Speed |
| Rear Derailleur | SRAM Force AXS, 12-Speed |
| Crankset | SRAM Force Wide, 43/30T |
| Bottom Bracket | SRAM DUB 68mm Road Wide BB |
| Chain | SRAM Force, 12-Speed |
| Cassette | SRAM XG1270, 10-36T |
| Brakes | SRAM Force AXS Hydraulic Disc, SRAM CLX R Centerlock 160mm Rotors |
| Wheelset | Reserve 25|GR Carbon Rims, DT Swiss 350 12×100/12×142 Hubs |
| Tires | Maxxis Rambler 700x45mm, DC, EXO, TR |
| Handlebar | Zipp Service Course SL-70 XPLR Bar |
| Stem | Zipp Service Course Stem, 70mm |
| Grips/Bar Tape | Velo Bar Tape |
| Seatpost | Easton EC70, 27.2, Zero Offset, 350mm |
| Seatclamp | Bolt-Type |
| Saddle | WTB Silverado Medium, Ti |
| Intended Use | Gravel, Fun |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| B: Effective Top Tube | 552 | 570 | 592 | 610 | 631 |
| C: Stack | 564 | 576 | 600 | 612 | 631 |
| D: Reach | 390 | 405 | 420 | 435 | 450 |
| E: BB Height | 278 | 280 | 280 | 282 | 282 |
| F: BB Drop | 78 | 76 | 76 | 74 | 74 |
| G: Head Tube Length | 105 | 120 | 145 | 160 | 180 |
| H: Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| I: Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| J: Standover Height | 728 | 753 | 778 | 804 | 830 |
| K: Chainstay Length | 430 | 430 | 430 | 430 | 430 |
| L: Wheelbase | 1043 | 1063 | 1087 | 1108 | 1130 |
| Size | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 17.9 | 19.1 | 20.3 | 21.5 | 22.6 |
| B: Effective Top Tube | 21.7 | 22.4 | 23.3 | 24.0 | 24.8 |
| C: Stack | 22.2 | 22.7 | 23.6 | 24.1 | 24.8 |
| D: Reach | 15.4 | 15.9 | 16.5 | 17.1 | 17.7 |
| E: BB Height | 10.9 | 11.0 | 11.0 | 11.1 | 11.1 |
| F: BB Drop | 3.1 | 3.0 | 3.0 | 2.9 | 2.9 |
| G: Head Tube Length | 4.1 | 4.7 | 5.7 | 6.3 | 7.1 |
| H: Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| I: Seat Tube Angle | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° |
| J: Standover Height | 28.7 | 29.6 | 30.6 | 31.7 | 32.7 |
| K: Chainstay Length | 16.9 | 16.9 | 16.9 | 16.9 | 16.9 |
| L: Wheelbase | 41.1 | 41.9 | 42.8 | 43.6 | 44.5 |
