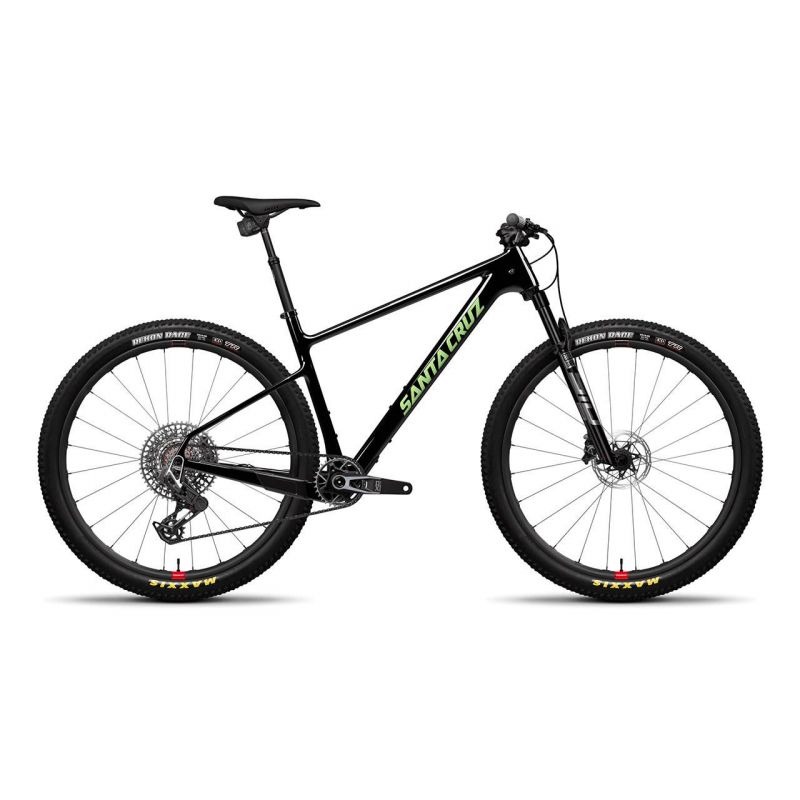

Santa Cruz Highball 3.1 CC X0 AXS RSV Bike
Ready To Win The Race
Cross-country bikes are lightweight and highly capable of taking on tough rides and races. These bikes are perfect for climbing, all-day epic rides, racing, and much more. The Santa Cruz Highball 3.1 CC X0 AXS RSV Bike is the flagship carbon hardtail race thoroughbred, and a dark horse in XC versatility. The Carbon CC Frame uses 100mm of travel on the front and 29″ wheels that roll over roots and rocks with ease. The frame features a 27.2mm seat post for a smoother ride, internal cable routing, capacity for three bottle cages, a threaded bottom bracket, and clearance for up to 2.4″ tires.
The X0 AXS RSV version of the Santa Cruz Highball comes with a SRAM X0 AXS Eagle 12-speed wireless electronic drivetrain. This includes a cassette that has a hill-crushing 10-52T gear range that makes climbing and navigating difficult terrain much easier. SRAM Level Silver Stealth hydraulic disc brakes provide excellent stopping power so you can descend under control. Reserve 28IXC 29″ Rims are paired with Maxxis Rekon Race Tires that can be set up tubeless for a smoother ride, better traction, and fewer flats.
Features
- Carbon CC Frame with a 27.2mm seat post for a smoother ride, internal cable routing, capacity for three bottle cages, and a threaded bottom bracket
- Wide tire clearance for up to 2.4″ tires
- SRAM X0 AXS Eagle 12-speed drivetrain performs exceptionally well in the most demanding riding conditions
- SRAM Level Silver Stealth hydraulic disc brakes provide excellent stopping power
- Tubeless-ready Reserve rims and tires for a smoother ride, better traction, and fewer flats
| Frame | Carbon CC |
|---|---|
| Fork | RockShox SID SL Ultimate, 100mm w/Remote |
| Rear Shock | Your Legs |
| Headset | Cane Creek 40 IS Integrated Headset |
| Shifters | SRAM AXS Pod Bridge, 12-Speed |
| Front Derailleur | No Way |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12-Speed |
| Crankset | SRAM X0 Eagle T-Type DUB, 34T |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Chain | SRAM X0 Eagle T-Type Flattop, 12-Speed |
| Cassette | SRAM X0 Eagle T-Type, 10-52T |
| Brakes | SRAM Level Silver Stealth, SRAM CLX 160mm Rotors |
| Wheelset | Reserve 28IXC 29″ Rims, Industry 9 1/1 Boost Hubs |
| Tires | Maxxis Rekon Race 29×2.35″ EXO TR |
| Handlebar | Santa Cruz Carbon Flat Bar, 760mm, 7mm Rise |
| Stem | SRAM Atmos 7k Stem, 70mm |
| Grips/Bar Tape | SRAM Grips |
| Seatpost | RockShox Reverb AXS XPLR, 27.2mm, 75mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | WTB Silverado Medium Ti |
| Intended Use | Cross-Country |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 405 | 430 | 470 | 530 |
| B: Effective Top Tube | 595 | 619 | 642 | 677 |
| C: Stack | 596 | 605 | 614 | 633 |
| D: Reach | 415 | 440 | 460 | 490 |
| E: BB Height | 313 | 313 | 313 | 313 |
| F: BB Drop | 60 | 60 | 60 | 60 |
| G: Head Tube Length | 95 | 105 | 115 | 135 |
| H: Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| I: Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| J: Standover Height | 707 | 704 | 739 | 755 |
| K: Chainstay Length | 426 | 426 | 426 | 426 |
| L: Wheelbase | 1119 | 1145 | 1169 | 1207 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 70 mm | 70 mm | 70 mm | 70 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm | 760 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’0″ – 5’5″ 152 – 165 cm |
5’5″ – 5’10” 165 – 178 cm |
5’10” – 6’1″ 178 – 185 cm |
6’1″ – 6’6″ 185 – 198 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 15.9 | 16.9 | 18.5 | 20.9 |
| B: Effective Top Tube | 23.4 | 24.4 | 25.3 | 26.7 |
| C: Stack | 23.5 | 23.8 | 24.2 | 24.9 |
| D: Reach | 16.3 | 17.3 | 18.1 | 19.3 |
| E: BB Height | 12.3 | 12.3 | 12.3 | 12.3 |
| F: BB Drop | 2.4 | 2.4 | 2.4 | 2.4 |
| G: Head Tube Length | 3.7 | 4.1 | 4.5 | 5.3 |
| H: Head Tube Angle | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° |
| I: Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| J: Standover Height | 27.8 | 27.7 | 29.1 | 29.7 |
| K: Chainstay Length | 16.8 | 16.8 | 16.8 | 16.8 |
| L: Wheelbase | 44.1 | 45.1 | 46.0 | 47.5 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 70 mm | 70 mm | 70 mm | 70 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm | 760 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’0″ – 5’5″ 152 – 165 cm |
5’5″ – 5’10” 165 – 178 cm |
5’10” – 6’1″ 178 – 185 cm |
6’1″ – 6’6″ 185 – 198 cm |
